FMC無框力矩電機
自主研發設計，性能優于同業產品
額定扭矩0.45Nm-3.5Nm
溫度傳感器防御
定轉子激光標識保證追溯性
多槽極（非普通的8極10極伺服電機的改版）齒槽定位力矩小
反饋可選配，提供高分辨率值編碼器及霍爾反饋
與國際接軌的產品尺寸：原使用國外主流產品的用戶可以無縫替換
成本優勢明顯，助力國產協作機器人成本控制
提供定制化解決方案；可提供無機殼/有機殼等方案
| 伺服電動機型號 | 額定功率 Pn(w) |
額定轉矩 Tn(Nm) |
額定轉速 nn(rpm) |
額定電流 In(A) |
轉矩 Tm(N.m) |
電流 lm(A) |
靜轉矩 TS(N.m) |
重量 G(Kg) |

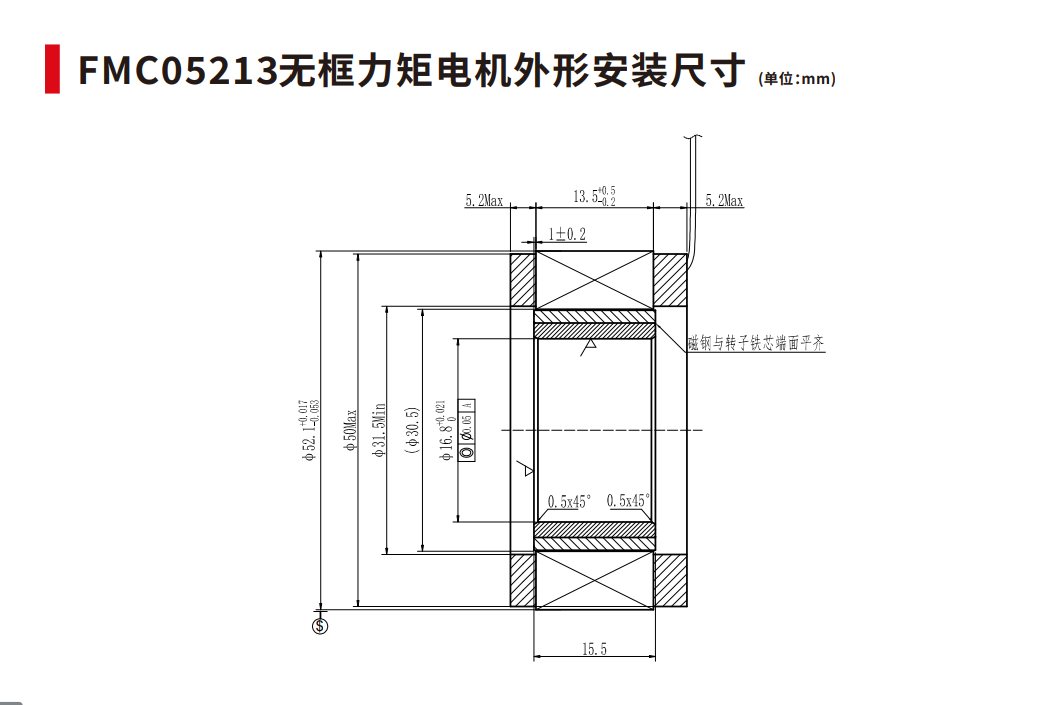

| FMC05213-0015-3716N-5DK00 | 159 | 0.4 | 3790 | 4.4 | 1.2 | 13.6 | 0.44 | 0.22 |

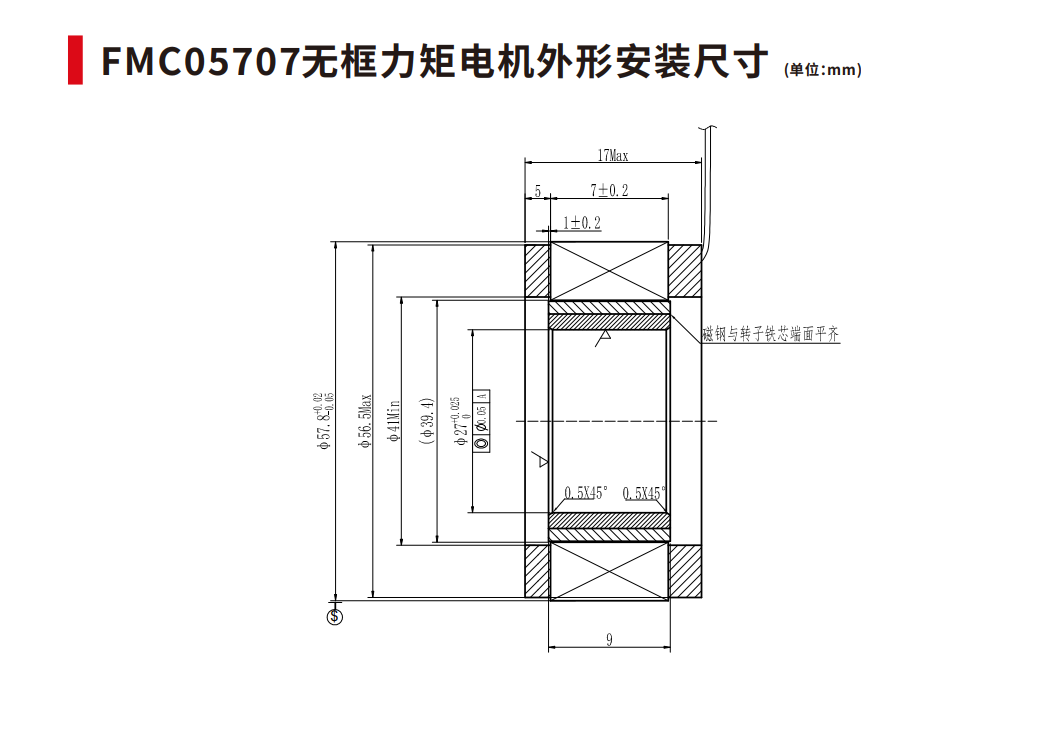

| FMC05707-0010-3027N-8DS00 | 100 | 0.32 | 3000 | 2.55 | 0.96 | 11 | 0.36 | 0.11 |
| FMC05714-0020-3027N-8DS00 | 200 | 0.64 | 3000 | 5.1 | 1.92 | 15.6 | 0.72 | 0.21 |
| FMC06013-0014-3130N-8DK00 | 146 | 0.45 | 3100 | 4.2 | 1.35 | 13.4 | 0.55 | 0.24 |

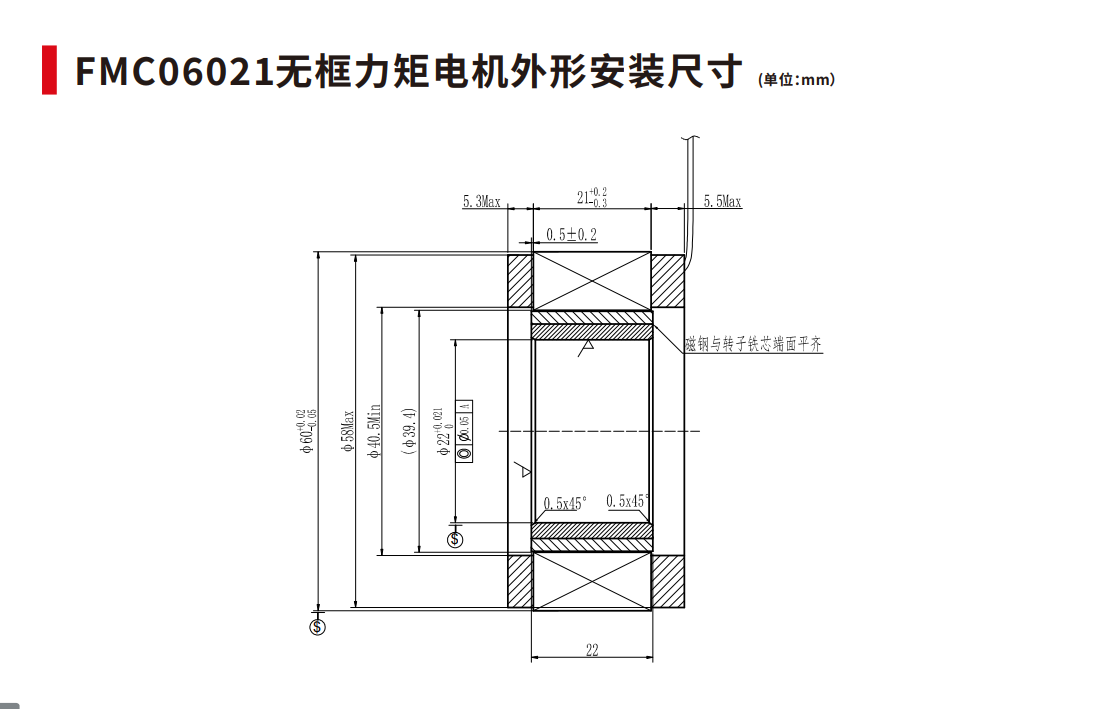

| FMC06021-0025-3722N-8DK00 | 258 | 0.65 | 3790 | 7.2 | 1.57 | 17.4 | 0.81 | 0.35 |

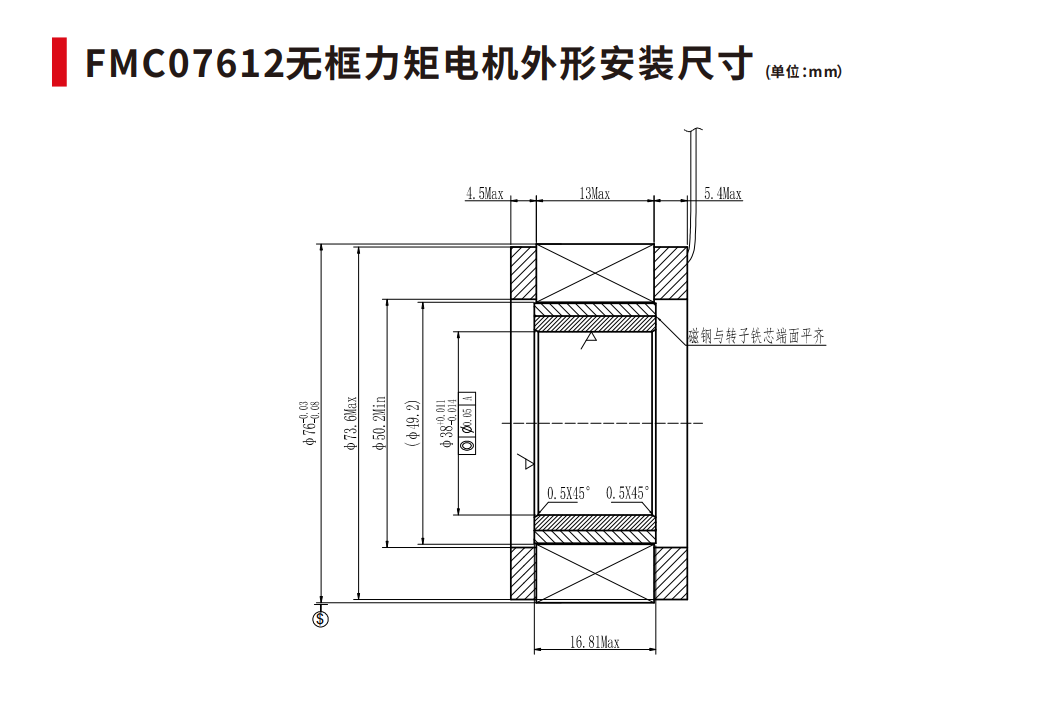

| FMC07612-0029-3338N-8DK00 | 293 | 0.85 | 3300 | 6.7 | 2.55 | 21.44 | 1.1 | 0.35 |

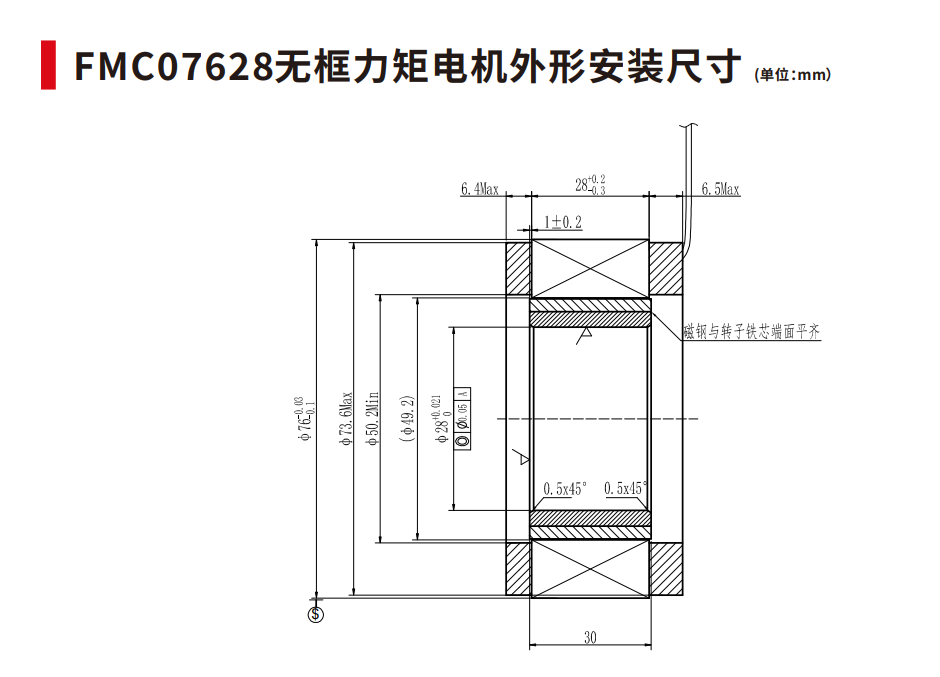

| FMC07628-0063-3728N-8DK00 | 635 | 1.6 | 3790 | 15.2 | 5.27 | 52 | 1.76 | 0.98 |

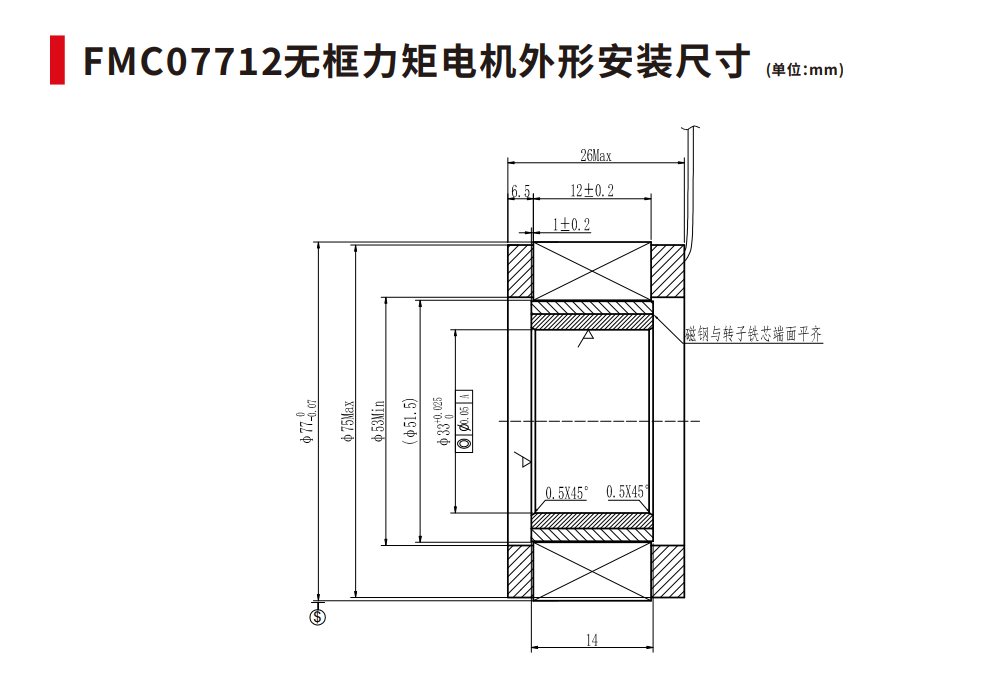

| FMC07712-0031-3033N-8DS00 | 314 | 1 | 3000 | 7.65 | 3 | 24 | 1.1 | 0.32 |

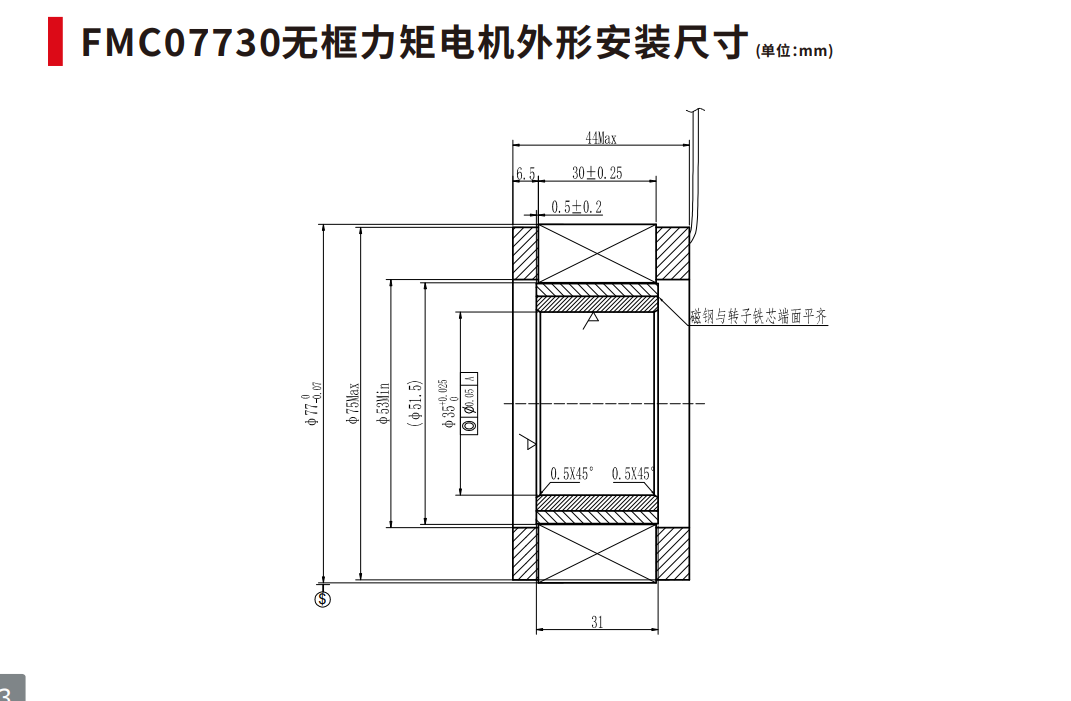

| FMC07730-0075-3035N-8DS00 | 750 | 2.39 | 3000 | 18.6 | 7.17 | 61 | 2.63 | 0.8 |

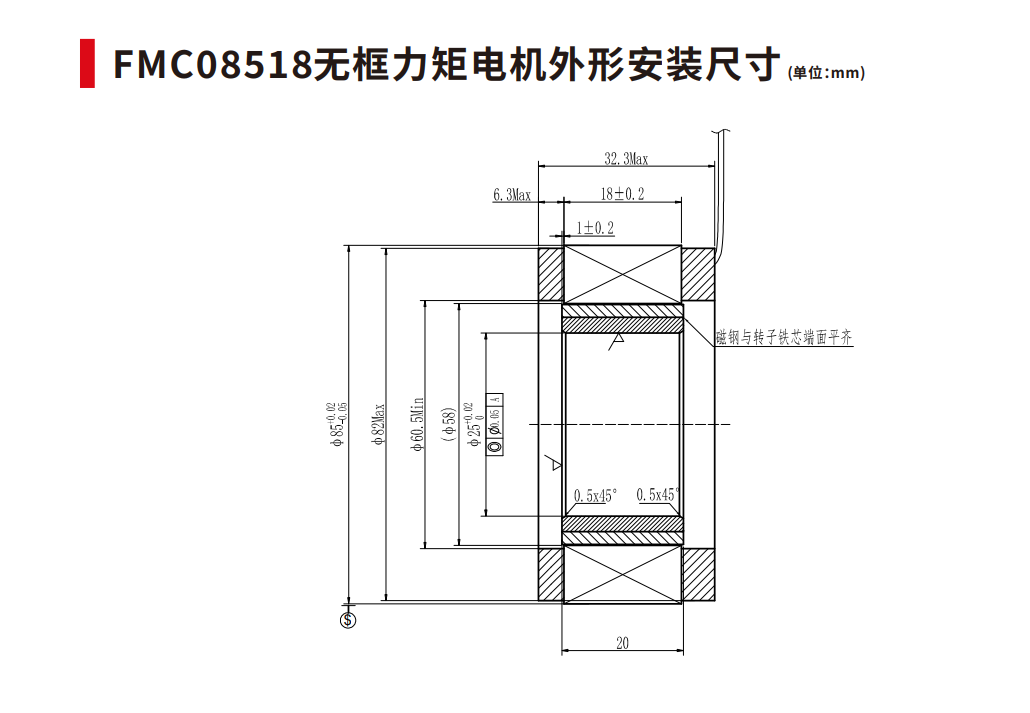

| FMC08518-0056-3025N-8DS00 | 565 | 1.8 | 3000 | 19 | 5.4 | 57 | 2 | 0.7 |

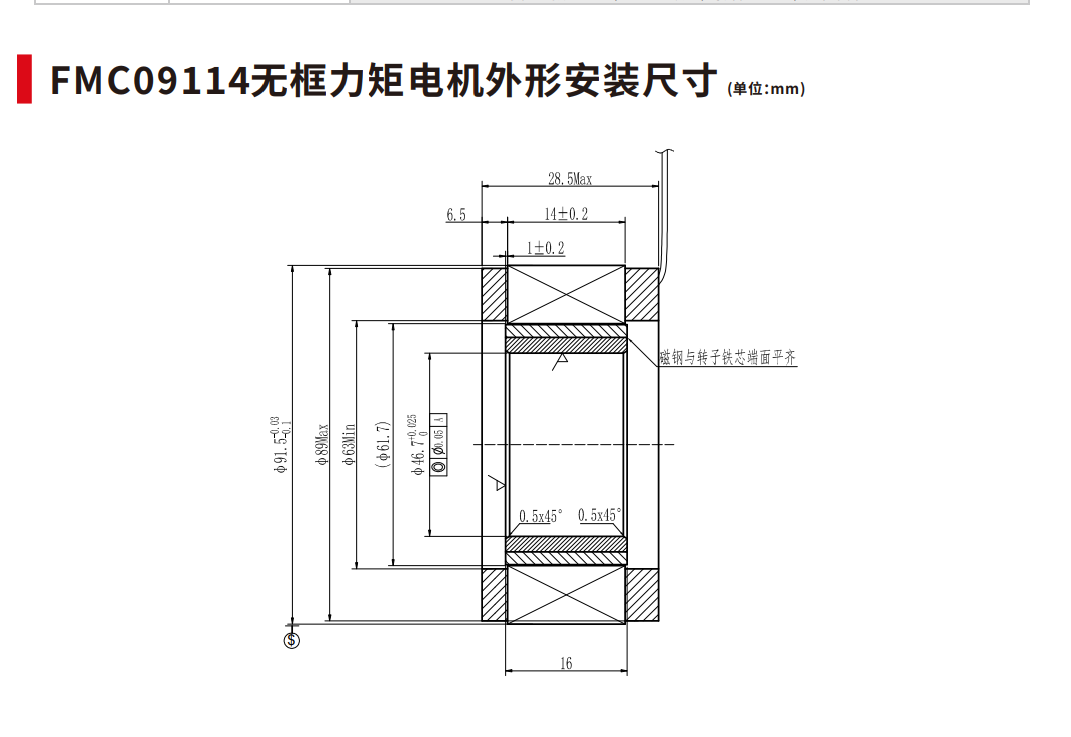

| FMC09114-0063-3046N-8DS00 | 630 | 2 | 3000 | 16.2 | 5 | 43.5 | 2.2 | 0.78 |

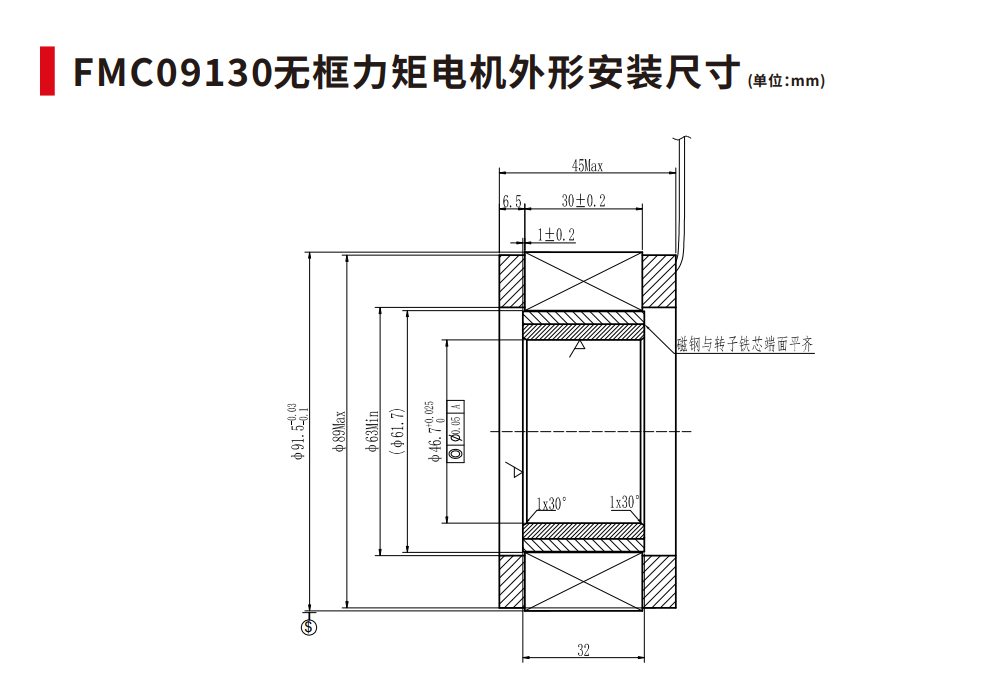

| FMC09130-0125-3046N-8DS00 | 1257 | 4 | 3000 | 27 | 10 | 72 | 4.4 | 1.03 |

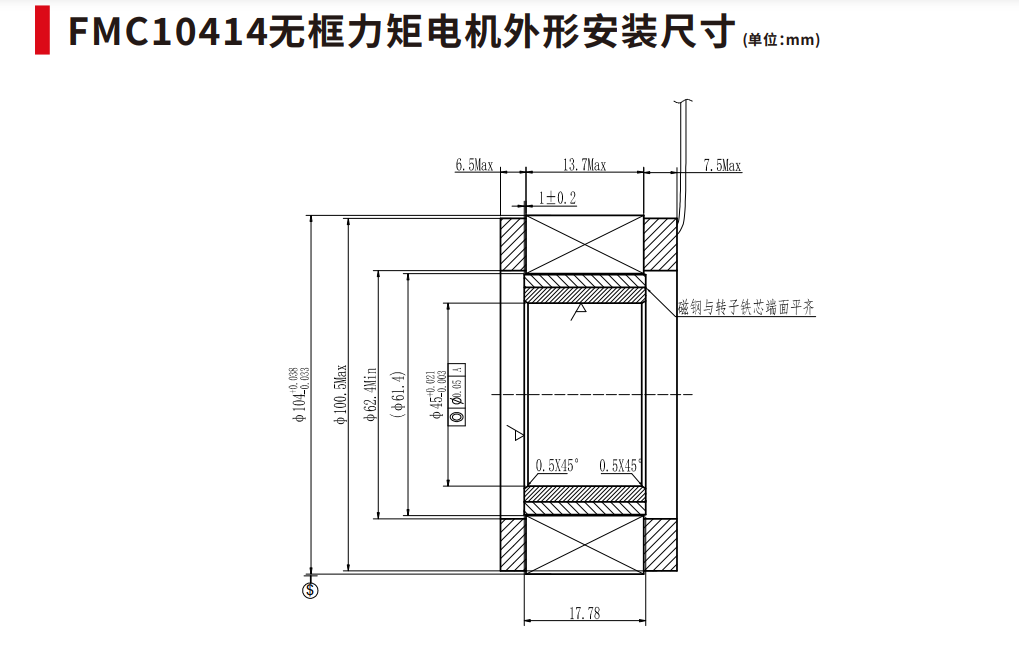

| FMC10414-0038-2445N-8DK00 | 380 | 1.5 | 2420 | 10.3 | 4.3 | 30.9 | 2.2 | 0.77 |

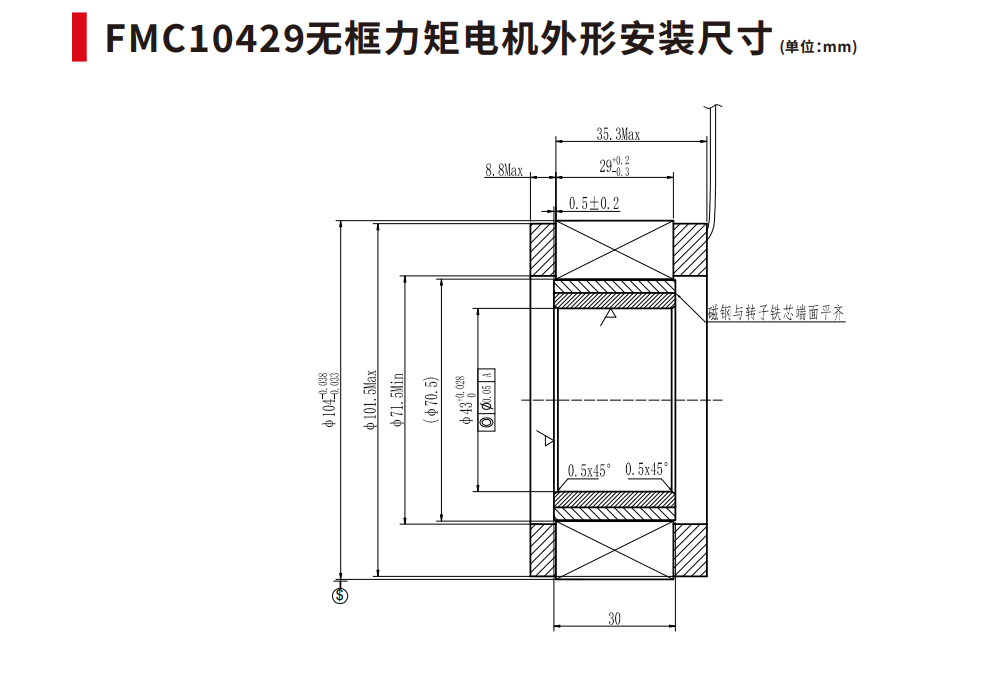

| FMC10429-0100-2543N-8DS00 | 1050 | 4 | 2500 | 22.5 | 12 | 74.1 | 4.4 | 1.51 |

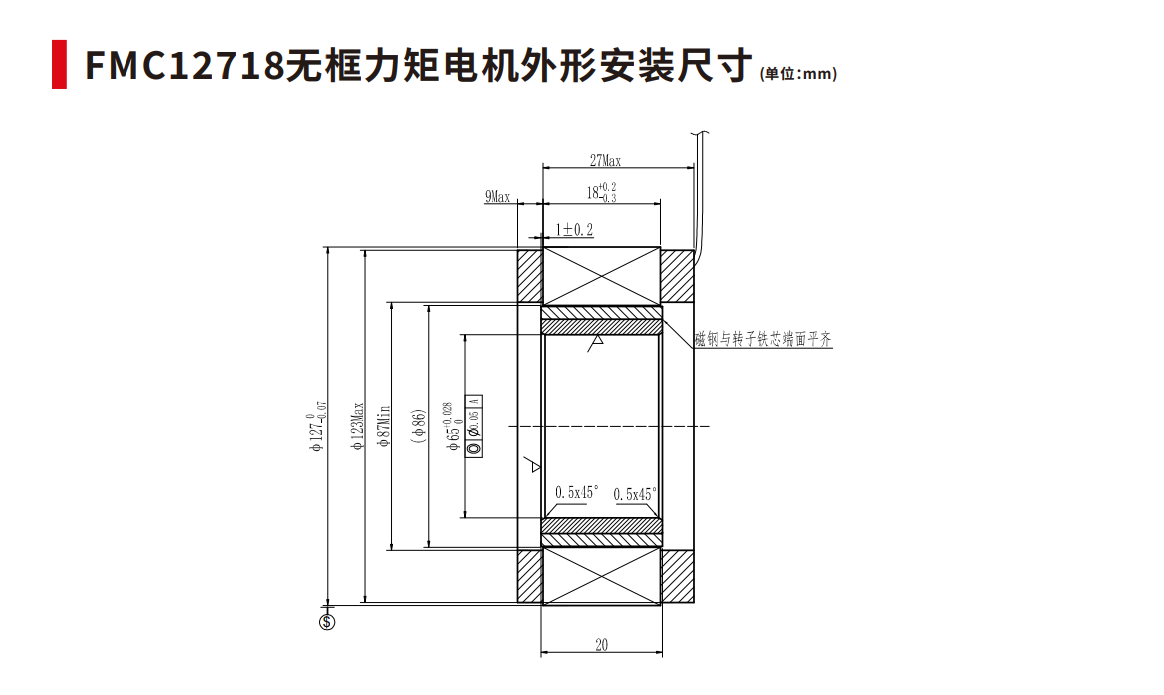

| FMC12718-0090-2465N-8DS00 | 904 | 3.6 | 2400 | 24 | 10.8 | 72 | 4 | 1.31 |

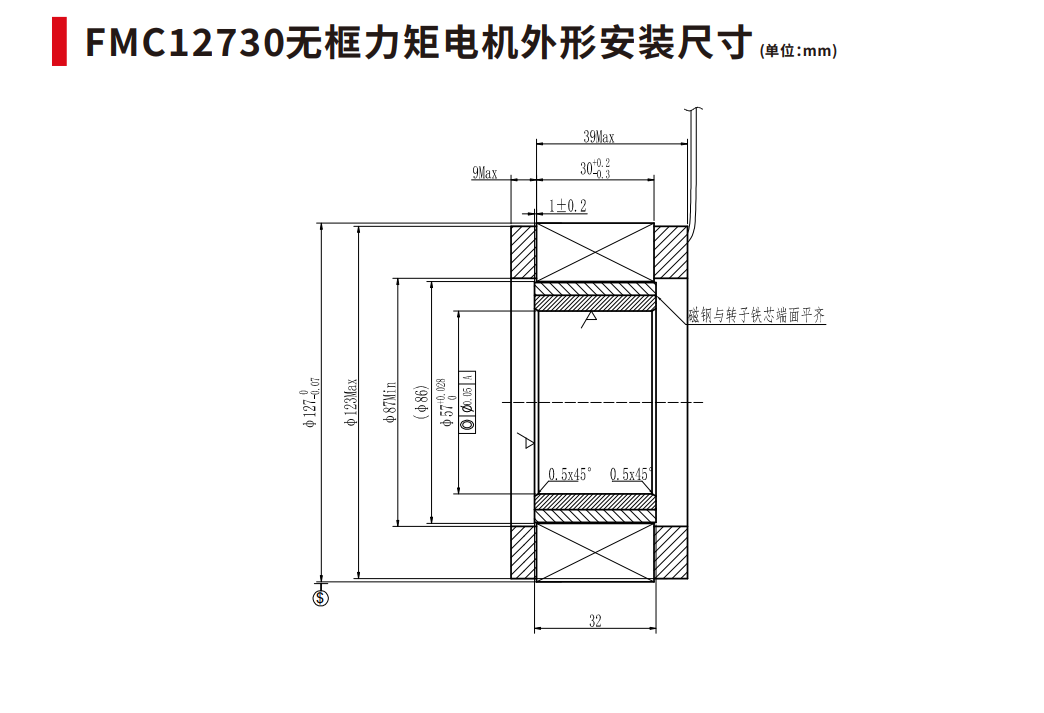

| FMC12730-0160-2457N-8DS00 | 1600 | 6.37 | 2400 | 35.5 | 18.11 | 110 | 7 | 2.18 |

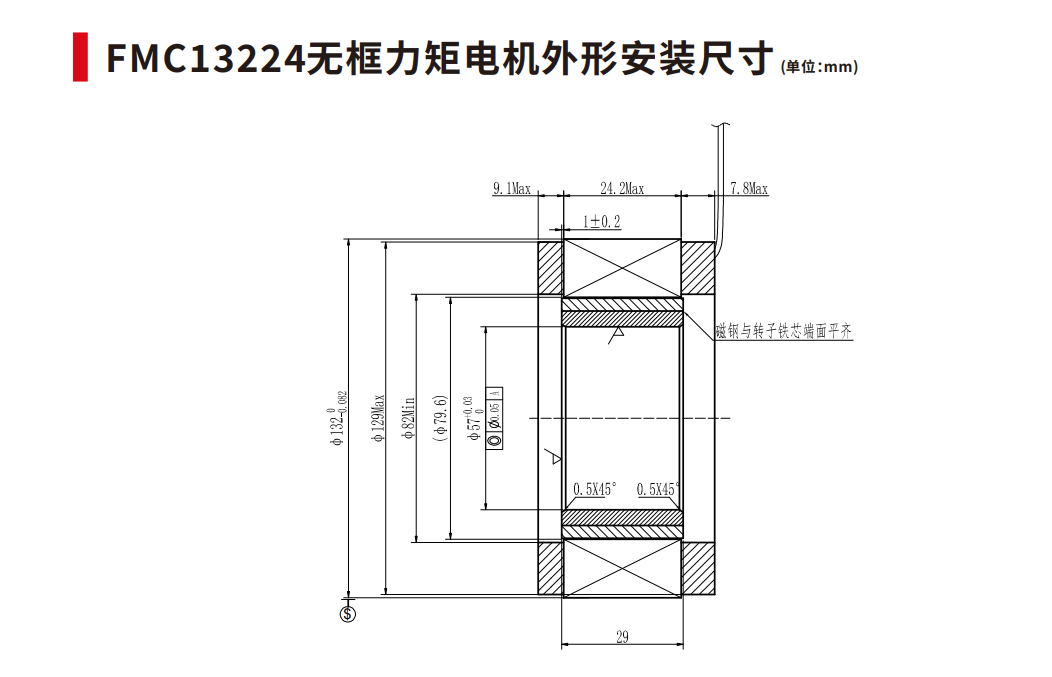

| FMC13224-0118-3243N-8DK00 | 1180 | 3.5 | 3220 | 29.2 | 8.4 | 70 | 3.85 | 2.01 |
